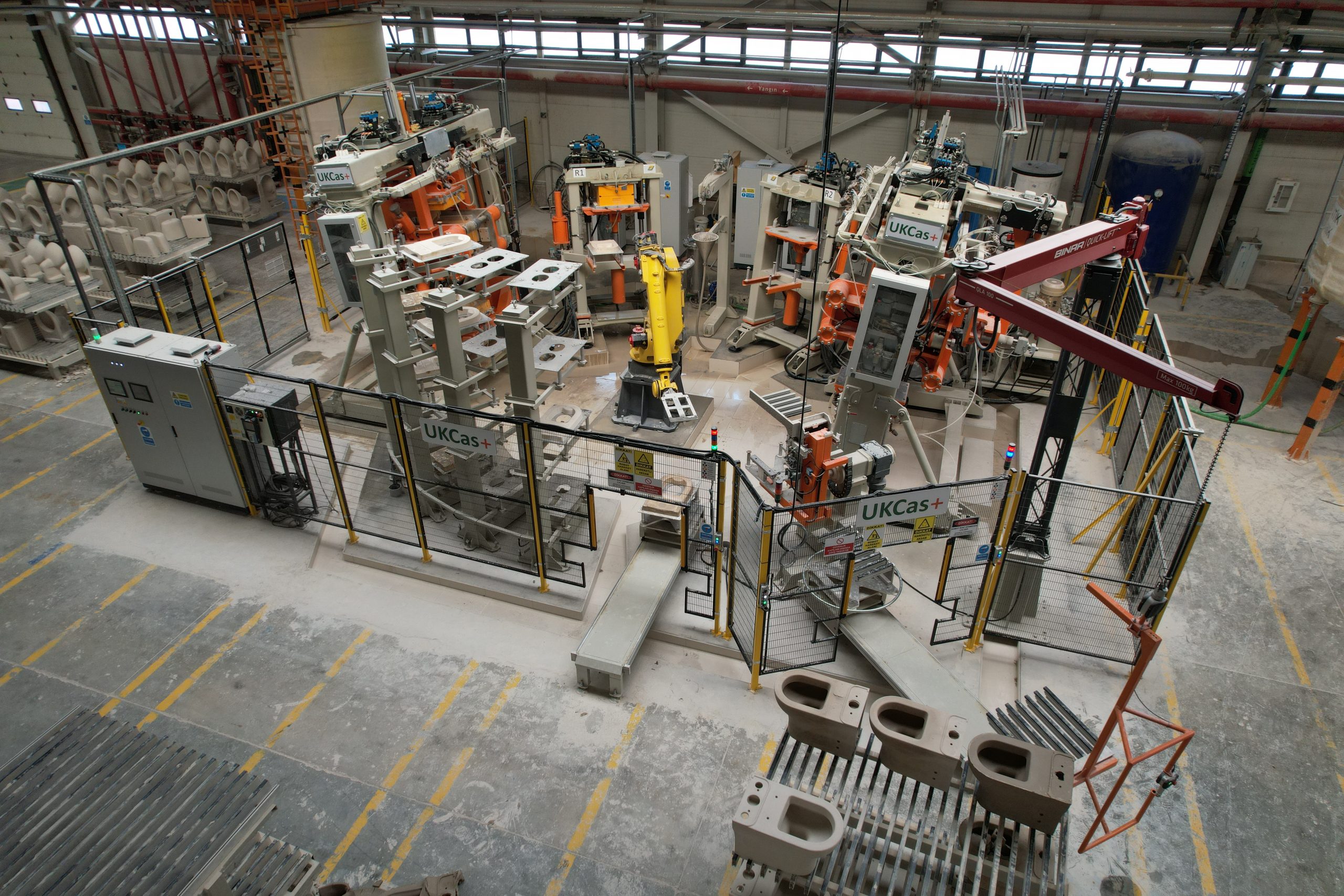

UKM 360 - High Pressure Stick On Rim WC Casting Machine

The UKCast UKM – 360 High Pressure Stick On Rim WC Casting Machine has been designed with purpose to casting of Wall Hung WC products. Machine equipment with 2 + 2 casting moulds.

● Stick On Rim Back to Wall WC

● Wall Hung WC

● Floor Standing WC

Structural and functional features:

Proportional hydraulics for activation of mould – tightening piston;

Slip and consolidating compressed air networks which allow simultaneous management of 10 different casting cycles

Centralization of the fluid control units (slip, consolidating compressed air , ejection compressed air vacuum

Auxiliary vacuum and water ) in a single electropneumatic board ;

Microprocessor – regulated system;

Use of moulds (filters) in micro and macro porous resin which are long – lasting and wear – free with superb surface finish

Operative features:

High labor productivity;

Minimum percentage of waste essentially due to automatic process control and resin mould features ;

High intrinnsic flexibility linked to the possibility of producing different product models and types simultaneously.

Moulds can be changed quickly;

● Production downtime due to mould exhaustion has been eliminated;

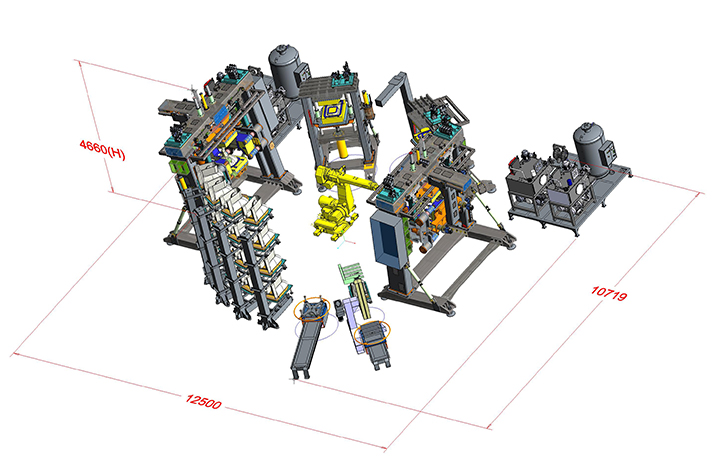

● Greatly reducted neccessary space in proportion to productivity

Technical description of the components of:

1. Stainless stell tank for slip storage and heating

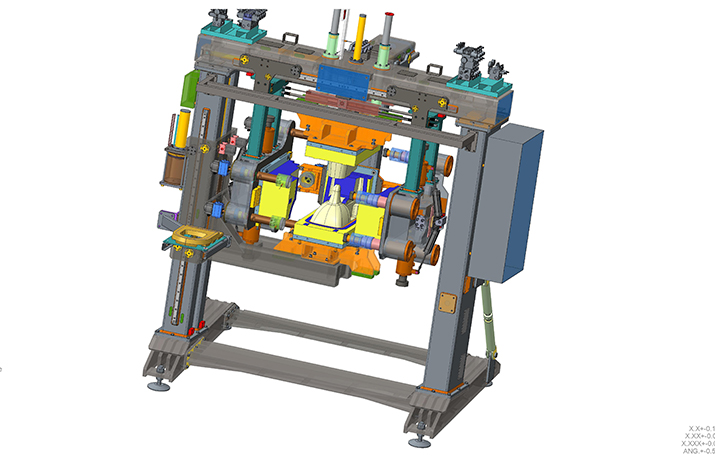

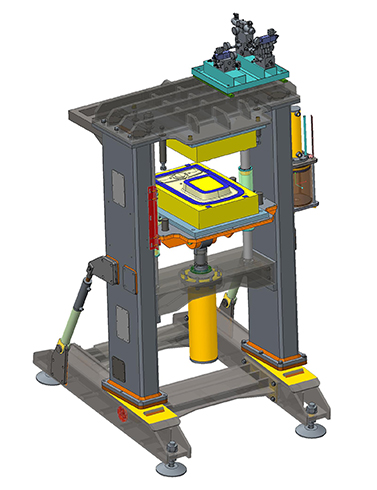

2. High pressure casting module for two parts mould

3. Frameworks

4. Mould support and handling groups

4.a mobile die group

4.b fixed die group

5. Mould closing groups

6. Slip circuit system

7. Auxiliary circuits

– compressed air circuit

– water circuit

– vacuum circuit

8. Electric equipment

9. Fast in system formould rapid installation on hpc casting modules

10. Safety protection for working area of automatic machine
